Map-Making Tools & Resources

Index

• Transformice Map Document Type Definition
• Object Code List
• Utility Applications
  • Polar Coordinates Converter
  • Map Flipper
  • Map Shifter
• Random Map Generator

Transformice Map Document Type Definition

If you do not know how to use it see the respective section in my map-making tutorial.

Object Code List

A simple text file listing the object codes and their corresponding object types for the C attribute of the object element in maps. I compiled this very early after the launch of the map editor by trying the different values for the attribute.

Utility Applications

The following applications are used by dragging and dropping a XML map file onto them. The format of the output XML file is likely to not be compatible with the map editor due to tabs used for indentation. Reformatting it by removing those tabs might be required.

The applications require the .NET framework to run, if they do not run properly try downloading the newest version.

The software is provided "as is" and you may use it at your own risk. I shall not be held accountable for any damages resulting from the use of the software.

Polar Coordinates Converter

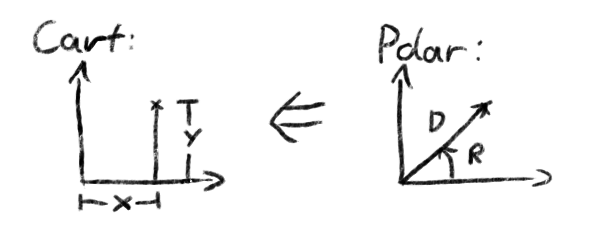

This application converts all grounds and objects in a transformice map that are defined via polar coordinates to grounds and objects defined via cartesian coordinates. This is mainly useful for circular structures.
The attributes you will need to specify instread of X & Y are:
CX: The center of the polar coordinate system on the X-Axis.
CY: The center of the polar coordinate system on the Y-Axis.
D: The distance of the point.
R: The rotation of the vector leading to the point.
An example:
<S CX="400" CY="210" D="165" R="30" L="100" H="10" T="0" P="1,0,0.3,0.2,0,1,0,0" />
Converts to:
<S X="542.89" Y="127.5" L="100" H="10" T="0" P="1,0,0.3,0.2,0,1,0,0" />
If your map file was called "IceAndLavaLulz.xml" the output file will be called "IceAndLavaLulz.conv.xml". (Note: If your map is crappy it will not become better by doing this.)

Note: This application has been updated to adopt the Transformice coordinate system (Y-Axis based, positive rotation clockwise), the old version (X-Axis based, positive rotation counter-clockwise) can be downloaded by clicking here.

Random Map Generator

While at first the map generation was almost completely random, this now probably should be called Procedural Map Generator because there are many restrictions on how grounds and spawns are placed, which game modes may occur and how strong or weak the gravity can be. The application can be used without any settings or parameters but the results will be quite, well, random.
Right now there are only three command line arguments available, those are:

• /ls=string Loads the settings from a XML file with the specified path.
• /silent Runs the application in silent mode, the console output will be very limited.
• /ws=string Saves the settings to a XML file with the specified path.

Since there are no arguments implemented for setting the settings directly, it is advised to save the default settings somewhere with the /ws argument which then can be adjusted.
The settings XML file is made up of many elements that I will explain now:

• SettingsFileVersion If this version does not match the programs version upon loading a warning message will be printed, since different versions may cause errors.
• RestartCountWarningDisable This can disable the warning that will be printed when the application fails to produce a valid map after a certain number of tries.
• RestartCountWarningLimit The number of restarts that may occors before the program is paused and a warning is printed (if not completely disabled with the element above).
• RandomizedGravityProbablity The probablity that the gravity will be randomized at all.
• RandomizedWindProbability The probability that the wind will be randomized at all.
• NightModeProbablity The probability of night mode being enabled.
• CollisionModeProbablity The probability of collision mode being enabled.
• PartnerModeProbablity The probability of partner mode being enabled.
• WindBounds The minimum and maximum value the wind parameter may assume if it is randomized.
• GravityBounds The minimum and maximum value the gravity parameter may assume if it is randomized.
• GroundNumberBounds The minimum and maximum number of grounds that will be placed in a map.
• GroundConfigArray An array of ground configurations, the child elements are called...
  • GroundConfig ...and contain settings regarding ground position, dimensions and parameters. They are mainly used to have certain settings that only apply to ground of the type ice for example. A GroundConfig has the following child elements.
    • ApplicableTypes A list of types to which the config applies.
    • ZoneArray An array of zones that specify the range of coordinates the ground can assume. Its child elements are called ZoneOfInt32, logically only integers should be used as values. You can define many zones to govern more strictly how ground is distributed.
    • LengthBounds The minimum and maximum value for the length of the ground.
    • HeightBounds The minimum and maximum value for the height of the ground.
    • RandomizedRotationProbability The probability that the ground is rotated at all.
    • RotationBounds The minimum and maximum value for the rotation of the ground.
• GroundTypeProbabilityArray An array containing the five probabilities for the respective ground types to occur, the order is: Normal, Ice, Trampoline, Lava, Chocolate.
• MarkerMaxCoordinateRecalculationCount I call the "mice stuff" marker, this sets how often random coordinates are calculated if the previous coordinates were taken. (If this amount is exceeded the generator restarts)
• HoleZone Specifies where the hole can be placed.
• CheeseZone Specifies where the cheese can be placed.
• MouseZone Specifies where the mouse spawn can be placed.
• ShamanZone Specifies where the shaman spawn can be placed.
• PlaceMouseSpawn Specifies whether a mouse spawn should be palced. (Mice spawn at hole if there is none)
• PlaceShamanSpawn Specifies whether a shaman spawn should be palced. (Shaman spawns at mouse spawn if available, if not the hole will be used for spawning)
• HoleOnGround Specifies whether the hole should be placed on a ground as opposed to somewhere in space.
• CheeseOnGround Specifies whether the cheese should be placed on a ground as opposed to somewhere in space.
• MouseOnGround Specifies whether the mouse spawn should be placed on a ground as opposed to somewhere in space.
• ShamanOnGround Specifies whether the shaman spawn should be placed on a ground as opposed to somewhere in space.
• PreventMarkerOnGroundTypeArray An array that contains the ground types on which markers may not be placed. (Spawning mice on lava often leads to the death of beginners who carelessly jump for example)
• PreventMarkerPlacementOnRotatedGrounds Specifies if markers may be placed on rotated grounds. (NOTE: Disabling this may lead to invalid maps because a corner of the ground can block the marker if rotated by 45 degrees for example. It is recommended to leave this setting as it is)
• ValidateShamanPath Specifies whether the generator checks if there is a path between the markers. (This prevents markers from being completely enclosed and unreachable)
• MarkerSpaceCheckZone Specifies how much space is needed for a marker. Using default values is recommended.
• NodeSpaceCheckZone Specifies how much space a pathfinding node takes. Using default values is recommended. (Or paths may be found that mice do not fit through)

That is about it, minor elements should be comprehensible from the element name alone.
Settings can be loaded via drag & drop as well if you do not want to use the respective command line argument.
There are many ways in which this application could be improved, for example one could introduce design patterns like balancing platforms or calculate the difficulty of a map so you can set bounds for that too. However I currently do not have the time to do anything like that but procedural map generation surely is an interesting topic and I might come back to it some time.
